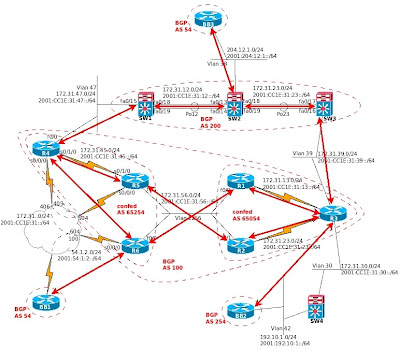

here it is, always using the INE topology, without initial configs:








This time I'll practice some security topics studied during the week:
-on R1 use CBAC to protect the inside ospf domain from the outside vlan 1256
-on R2 use reflexive acls to do the same as R1
-on R6 use ZBF, with 3 zones: outside1 on vlan 1256, outside2 on FR to BB1 and INSIDE on FR to R4
-it would be nice to use FLEX packet matching on R4 (altrough I couldn't find a PHDF file... any directions about this?)
-it would be nice to have the rip domains converging each other via multicast using v1 advertisement :-)
-you can't create any tunnel interface on R3
-in the bgp section, all traffic between as 54 and 254 must transit on vlan 1256

As usual this is a full dual stack lab, but you can try NAT-PT when required.

I Hope you will have fun during this we!
:-)
Marco
